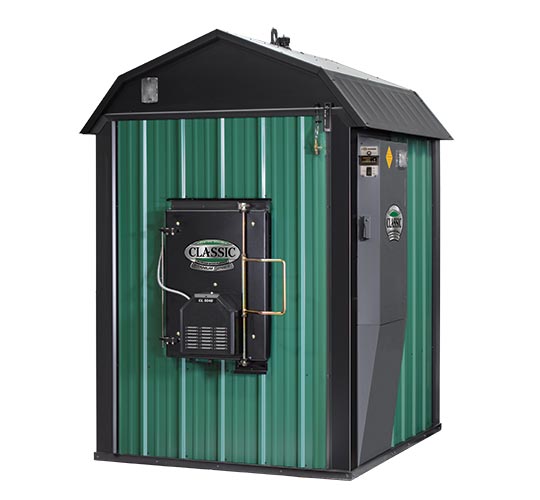

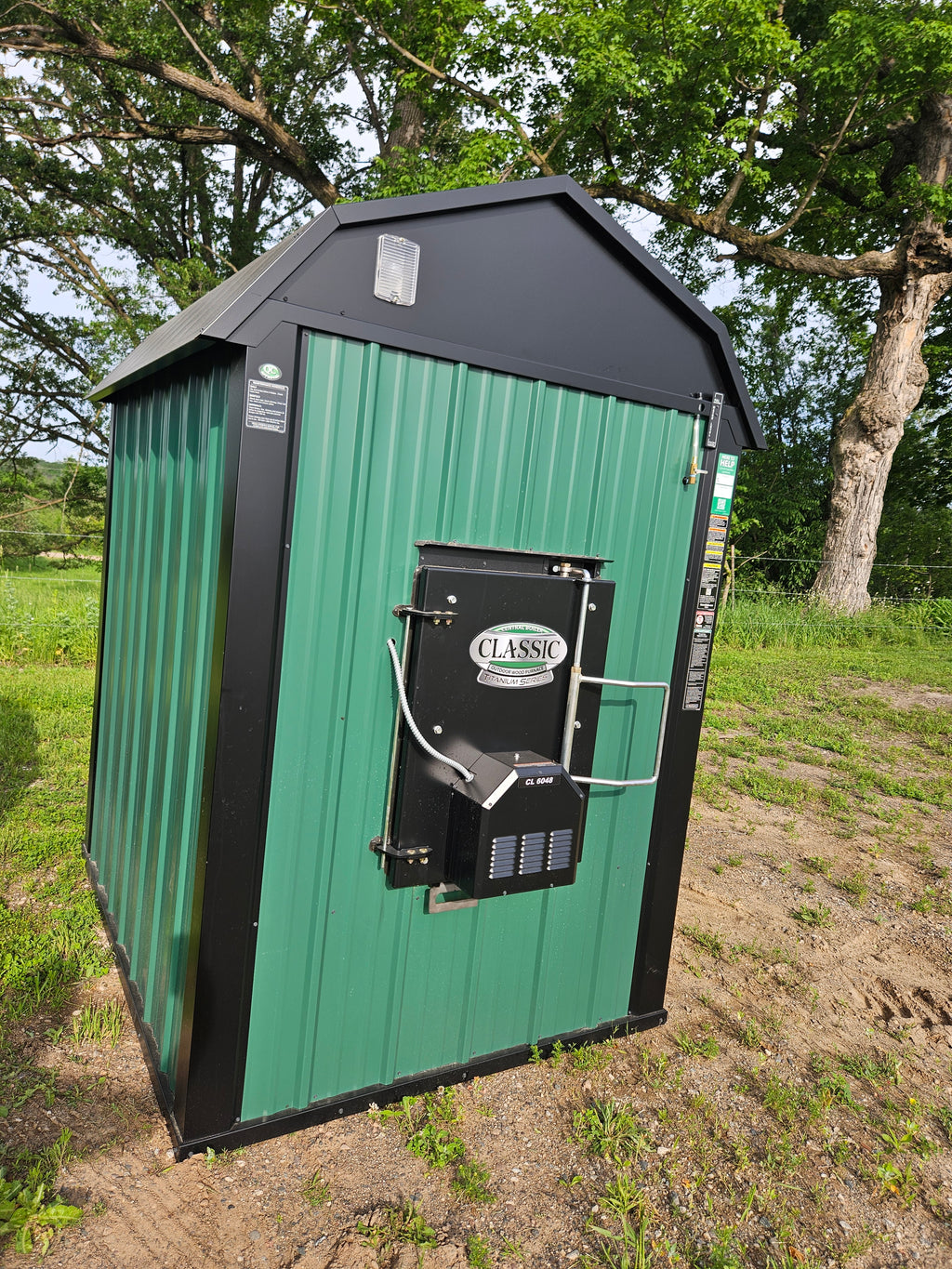

Classic 6048 Titanium

Classic CL 6048 Titanium Series

Outdoor Wood Furnace

In the U.S., this appliance is for non-residential applications only.

Replaces up to 600 gallons of fuel oil per month*

Door - 23"W x 31"H

Firebox - 60"L x 48"H x 36"W

Heat Transfer Area - 119 sq ft

Weight - 2,140 lbs

Water Capacity - 393 gal.

Measurements and Foundation Dimensions - Illustration

Included with outdoor furnace - Water Test Kit and two 4-foot chimney sections

Recommended (not required) - Ground Rod Kit (p/n 6593)

*Actual performance values have been relayed to Central Boiler by Central Boiler Classic furnace owners.

Dual Fuel Ready option - Ask about the Dual Fuel Ready model that allows the furnace to be fitted with an optional fuel oil, natural gas or propane burner.

As the outdoor wood furnace that set the standard for quality and revolutionized the industry, the Classic is the perfect choice for heating your business, shop, barn and more.

1. Simple Installation - The skid base framework makes installation easy with or without a cement foundation. Only the CL 7260 and Pallet Burner models require a slab foundation. Simply set the furnace in place, connect the piping and heat exchangers to your existing heating system, and the Classic is ready to go to work.
2. Easy Loading - Loading wood is easy with the large insulated cast-iron firebox door. Ergonomically designed, the door is easy to open and close, and locks in the heat.
3. Convenient Operation - The automatic draft control in the firebox door controls how the fire burns based on settings you select on the digital temperature controller.
4. Burn Less Wood - A hallmark of Central Boiler furnaces for over 30 years, spray-on urethane is the ultimate airtight, waterproof insulation that locks the heat in to reduce wood usage, even at temperatures of -35°F or colder.

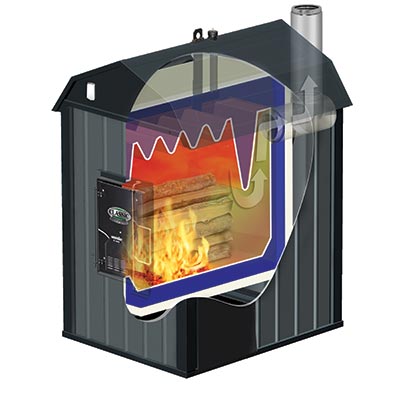

5. Efficient Operation - The RippleTop® and HeatLock Baffle® increase the heat transfer area in the firebox and trap the heat and gases in the top of the firebox for the most complete combustion and heat extraction. The high-capacity water jacket provides a proven balance between firebox volume and water capacity for optimum performance and safety.
6. Easy Inspection and Maintenance - Large firebox doors and an angled firebox base make ash removal easy and fast. Central Boiler's Cam Loc® door closure ensures a tight seal each time the door is closed. The rear-exiting design of the chimney eliminates leaks and corrosion that through-the-roof designs can experience. The Classic's chimney is designed for easy inspection and reduces heat loss by over 50%.
7. Durability and Reliability - Classic furnaces are manufactured with attention to detail. From a rectangular firebox that won't collapse like round fireboxes can, to overlapped steel siding, photo electric controlled night light and high-quality coated fasteners, every component must meet the highest standards...ours.
