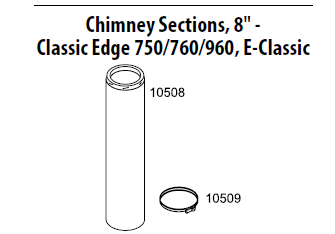

10508 8" Chimney Extension, 4’
Type HT listed, factory-built, all stainless steel chimney section. If connecting to Chimney Extension (p/n 6500002), use 8" Chimney Band Clamp Kit (p/n 4518) at the joints, not Chimney Snaplock Clamp (p/n 10509). Sections are four feet long. The 8" Chimney Ring (p/n 1200037) is required for Classic furnaces with the square chimney box (requires welding to the furnace).
Details
Overall Efficiency (LHV) - 96.2%*
Overall Efficiency (HHV) - 89.2%*
Manufacturer's Rated Heat Output Capacity** - 190,000 Btu/hr
Door - 15.5"W x 13.5"H
Weight - 1,310 lbs
Supply/Return Ports - 1 set of 1-1/4" supply and return ports, 1 set of 3/4" supply and return ports
Water Capacity - 90 gal.
Hopper Capacity - 11 Bushel (600 lbs)
Included with outdoor furnace - Water Test Kit, Cleaning Rod, Flue Brush Kit, Ground Rod Kit, Ash Scoop, Rain Cap and two 4-foot chimney sections
PICKUP ONLY
Outdoor wood boilers are PICK UP ONLY - Cannot be delivered or shipped.
