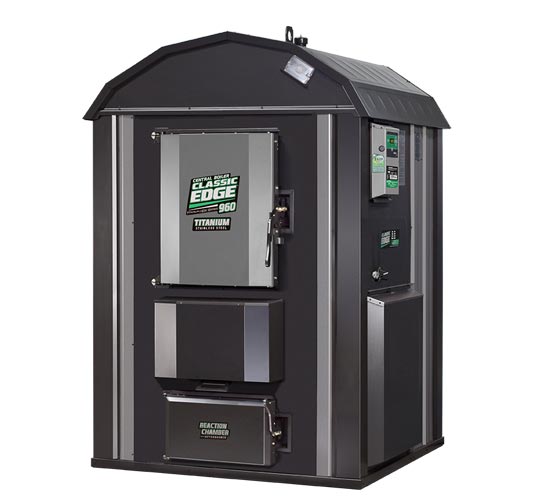

Classic Edge 960 HDX
Classic Edge 960 Titanium HDX
Overall Efficiency (LHV) - 92.1%*
Overall Efficiency (HHV) - 85.6%*
Manufacturer's Rated Heat Output Capacity - 400,000 Btu/hr**
Heat Output (12 hr) - 212,957 Btu/hr
The Classic Edge 960 is EPA Step 2 Certified.
Firebox Volume - 32 cu ft
Firebox Dimensions - 42.75" L x 43.5" H x 31.5" W
Door - 22.75" W x 28.75" H
Ash Cleanout Door - 20" W x 11" H
Water Capacity - 420 gal.
Weight - 2,714 lbs
Supply/Return Ports - 1 set of 1-1/4" supply and return ports, 2 sets of 3/4" supply and return ports
Integrated Wi-Fi Connectivity - Standard
Bypass Door and Alarm - Standard
Included with outdoor furnace - Water Test Kit, Cleaning Rod, Scraper Tool, Ground Rod Kit and two 4-foot chimney sections
NOTE: Specifications are subject to change without notice.
*Efficiencies are determined under the same test conditions using higher heating value, lower heating value and overall efficiency. **Based on EPA qualifying test.
Details
Overall Efficiency (LHV) - 96.2%*
Overall Efficiency (HHV) - 89.2%*
Manufacturer's Rated Heat Output Capacity** - 190,000 Btu/hr
Door - 15.5"W x 13.5"H
Weight - 1,310 lbs
Supply/Return Ports - 1 set of 1-1/4" supply and return ports, 1 set of 3/4" supply and return ports
Water Capacity - 90 gal.
Hopper Capacity - 11 Bushel (600 lbs)
Included with outdoor furnace - Water Test Kit, Cleaning Rod, Flue Brush Kit, Ground Rod Kit, Ash Scoop, Rain Cap and two 4-foot chimney sections
PICKUP ONLY
Outdoor wood boilers are PICK UP ONLY - Cannot be delivered or shipped.
